Specifications





     spacer sp




FOD Finder™ XM
FOD Finder™ XF
Operating Temperature* -40°F to 140°F | -40°C to 60°C   -40°F to 140°F | -40°C to 60°C
Operating Humidity 100% 100%
Operating Conditions All Weather, Day and Night All Weather, Day and Night
Detection Range 80 ft. to 460 ft. | 25 m to 140 m 230 ft. to 900 ft. | 70 m to 275 m
Geo-Tagging Accuracy 5 ft. | 1.5 m 5 ft. | 1.5 m
Angular Coverage 30 Scans per Minute (for -40° to 40°) 4 Scans per Minute (for -75° to 75°)
Radar Enclosure 58 in. x 58 in. x 44 in.
1474 mm x 1474 mm x 1118 mm 		58 in. x 58 in. x 44 in.
1474 mm x 1474 mm x 1118 mm
Radar Weight 500 lbs | 227 kg 500 lbs | 227 kg
Maximum Vehicle Speed 30 Miles per Hour | 48 Km per Hour N/A
Power  900 W 900 W
IP Protection IP65 IP65
Frangibility N/A According to FAA AC 150/5220-23

*with Extreme Weather package Option

FOD Finder™ XF HD Camera System
Physical Dimensions 0.65m (L) x 0.35m (W) x 0.46m (H) (Unmounted)
Weight 22 kg
Maximum Scanning Area (Azimuth) -85° to 85°
Maximum Scanning Area (Elevation) 0° to -6°
Range 50m - 275m
Field-of-View 3m (Horizontal)
Max Time Between Detection and Image <2 Minutes
Illuminator Beam Diameter at Exit Window 75 mm
Center Wavelength 798 nm
Total Optical Power  10 W
Eye Safety Range from Illuminator >60m



FOD Finder XM Options

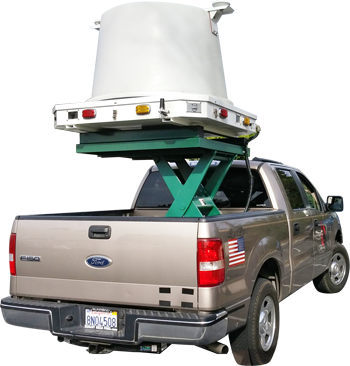

Hydraulic Scissor Lift scissor lift

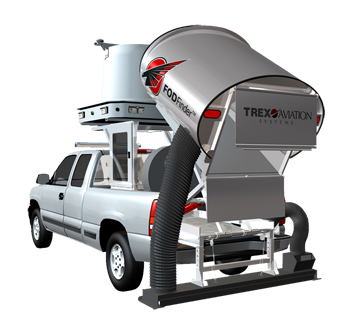

Vacuum System vacuum
